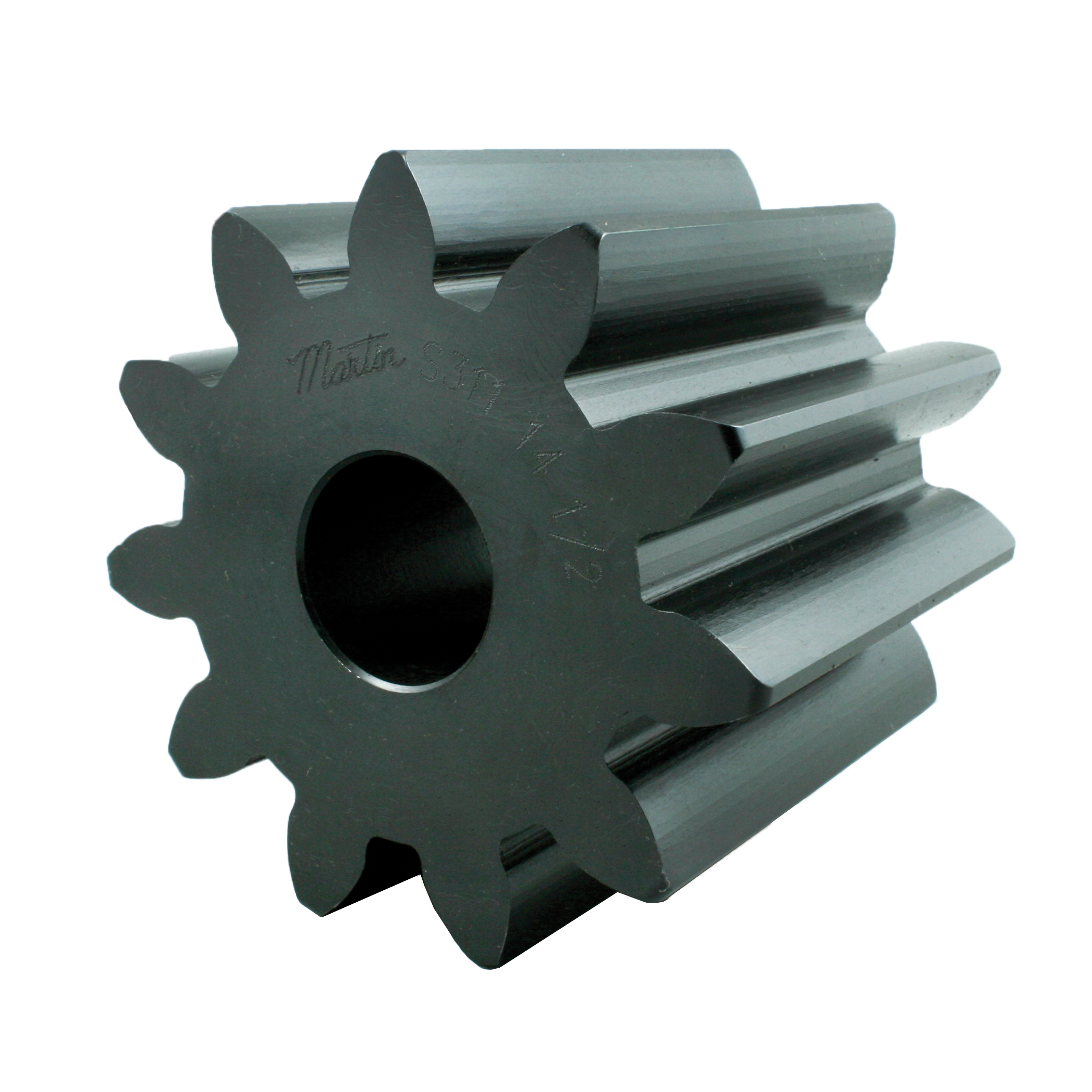

Martin S311 MARS311
Martin S311 Reboreable Stock Spur Gear, 3 Diametral Pitch, 14.5 deg Pressure Angle, 4 in W Face, 11 Teeth, 3.666667 in Dia Pitch, 1-5/16 to 2 in Dia Bore, Steel
- Manufacturer: Martin Sprocket & Gear
- Brand Name: Martin
- Part Number: MARS311
- MPN: S311
- UPC: 697950053271
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Martin stock spur gears are available in five different styles. Steel gears are furnished in plain style and plain style with hub. Cast gears are furnished, plain with hub, web with lightening holes, and spoke. Cast gears are machined on all operating surfaces. Martin cast gears are cast with a larger hub to provide extra strength and to allow for larger bores. Spur gears are stocked in both 14-1/2 and 20 deg pressure angles.
Martin Stock Spur Gear, Reboreable, 1-5/16 to 2 in Bore, 4.333333 in OD, 11 Teeth, 3 Diametral Pitch, 3.666667 in Pitch Diameter, 4 in Face Width, A Hub, 4 in Overall Length, 14.5 deg Pressure Angle, Steel
| Bore Diameter | : | 1-5/16 to 2 in |
| Diametral Pitch | : | 3 |
| Face Width | : | 4 in |
| Hub Type | : | A |
| Material | : | Steel |
| Number of Teeth | : | 11 |
| Outside Diameter | : | 4.333333 in |
| Overall Length | : | 4 in |
| Pitch Diameter | : | 3.666667 in |
| Pressure Angle | : | 14.5 deg |
| Type | : | Reboreable |
- Manufactured of high carbon steel material
- Precise machining and processes ensure consistent finish and high quality
